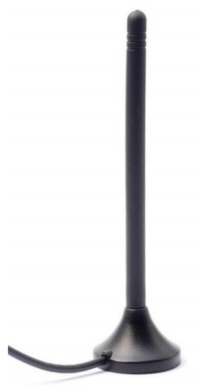

GSM Antenna magnetic mount multi band (3G)

Multi band magnetic antenna  ( GSM, DCS, PCS, AMPS, UMTS, 3G)

The multi band antenna can be mounted on metal by magnet.

Magnetic GSM antenna general data

• Dimensions (mm): 120 x 29
• Temperature range: -40^o C to +85^o C
• Coaxial cable GSM/UMTS: RG 174 2400 mm FME/F or SMA/M
• Other cable length, cable type or coaxial connector upon request

Technical data cellular  band

• Frequency range:
• GSM 850 / 900: 824 - 960 MHz
• GSM 1800: 1710 - 1880 MHz
• GSM 1900 / UMTS: 1920 - 2170 MHz
• Impedance: 50 Ohm
• Max power: 30 W
• VSWR: <2.0
• Gain: -2 ~5 dBi (5dbi at peak)
• Antenna efficiency: 24% ~ 46%
