Coaxial cables

The focus is on coaxial cables (0.8mm to RG213) for wireless markets, such as GSM, UMTS, 3G, 4G ,LTE, GPS, WiFi, Zigbee and Bluetooth.

Coaxial Cable Assembly

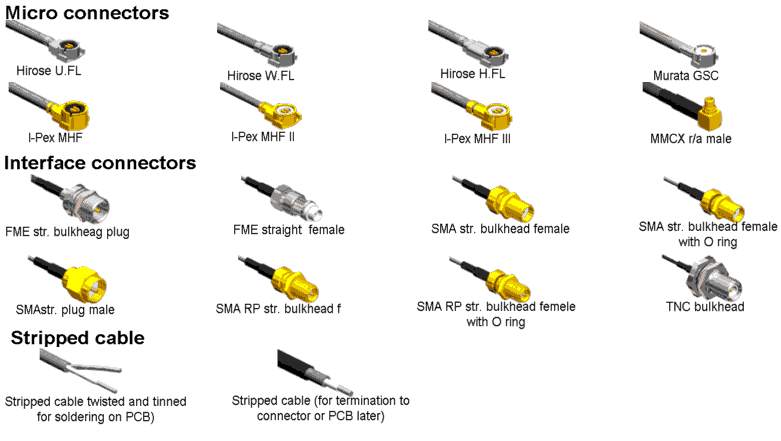

• I-Pex
• I-PEX MHF: Compatible with Hirose UFL,  I-PEX MHF 3 III: Compatible with Hirose WFL
• I-PEX MHF 4: Compatible with Murata MHSC MXHP32
• Murata GSC mxtk92 (common with several GSM modules)
• Hirose U.FL, W.FL and H.FL (common with several GSM modules)
• MMCX (common with several GSM modules)
• U.FL (common with several wireless modules)

 Standard Interface Connectors

• SMA/RP SMA (Reverse polarity) bulkhead  (Available with O-ring)
• FME bulkhead male
• Other interface connectors: TNC, RP TNC, SMA with square flange, SMA male, FME female, MCX, RP MCX, BN

 Cable:

• Variety of cable diameters available
• Standard lengths: 100, 150 and 200 mm, other lengths available on request
• Stripped cable for termination to a connector later OR tinned centre conductor and copper wire soldered to braid/shield allows solder to PCB

 Quality:

• 100% conductivity tested
• Frequency analysis reports (insertion loss, working frequency range) available on request
• 100% Test available on request
• Working frequency: Standard SMA and RP SMA cables rated at DC to 3 GHz.  We offer Cable 078 and 080 rated to 6 GHz. If you require a higher frequency for any cable listed please ask
